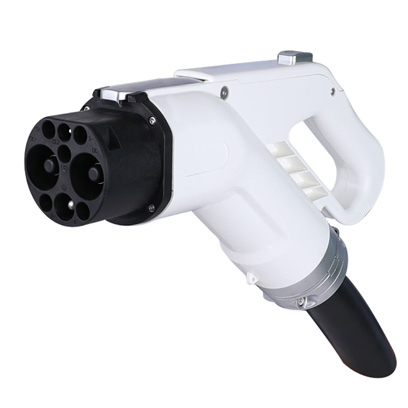

第四款国标直流充电枪

应用领域:

下载手册

产品参数:

□ 额定电压 Rated Voltage:1000 V DC

□ 额定电流 Rated Current:80A/125A/200A/250A

□ 绝缘电阻 Insulation Resistance:≥500MΩ

□ 耐电压 Withstand Voltage:3500V AC

□ 机械寿命Mechanical Lifetime:≥10000 cycles (no-load)

□ 插拔力 Insertion and Separation Forces:F<140N

□ 防护等级Protection Degree:IP67

□ 环境温度 Operating Temperature:-30℃~50℃

□ 湿度 Operating Moisture:5%~95%(40℃)

□ 阻燃等级 Flame Retardant GradeUl94 V-0

□ 锁止机构类型Type of Locking Mechanism:马达锁 electric motor
